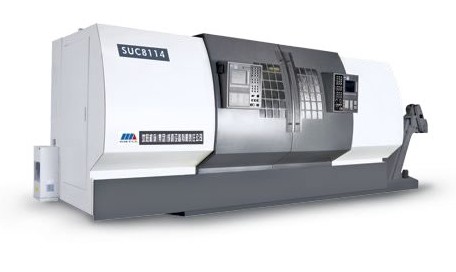

Machining crankshaft flange end-face hole, adopts integrated cast iron slant bed in 45°. Two sets of left/right symmetrical three-coordinate units on the bed realize the movement in X, Y and Z directions.Equipped with two sets of SIEMENS 802D CNC systems, three axes of this machine can interpolate. Therefore, both ends of the crankshaft can be machined simultaneously and also separately. The machine is suitable for machining double-end holes of various crankshaft components with length range from 500mm to 1100mm, and features high rigidity, high accuracy, high automaticity, low labor intensity and convenient operation, as well as suitable for large volume production. |
|
| >> SUC8114曲轴两端孔加工系列Technical parameters |
|
Length range of crankshaft to be
machined
|
500-1250mm
|
|
Max. flange center hole diameter at crankshaft
end
|
φ200mm
|
|
Diameter range of screw hole to be
machined
|
M6-M18mm
|
|
Diameter range of pinhole to be
machined
|
φ5-φ20mm
|
|
Spindle speed
|
250-4000rpm
|
|
Spindle motor power
|
9kW
|
|
Max. travel of CNC slide on both sides of Z-axis
|
450mm
|
|
Max. travel of CNC slide on both sides of X-axis
|
400mm
|
|
Max. travel of CNC slide on both sides of Y-axis
|
200mm
|
|
Turret station
|
8Spaces
|
|
Rapid moving speed of X/Y/Z-axis
|
8m/min
|
|
Positioning accuracy of X/Y/Z-axis
|
0.01/0.01/0.016mm
|
|
Repeat positioning accuracy of X/Y/Z-axis
|
0.005/0.005/0.007mm
|
|
Machine power
|
48.5kW
|
|
Machine Dimension
|
5320×2188×2390mm
|
|
Machine weight
|
12000kg
|
|
