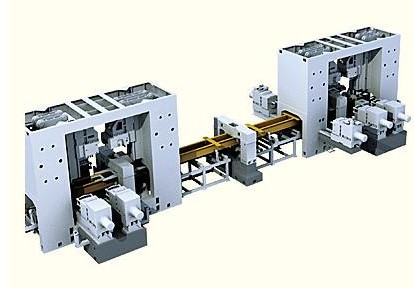

ZYZ-118中梁组合钻床系列ZYZ CNC Special machine |
| |
|
| >> ZYZ-118中梁组合钻床系列Product Preview Keys：
Hits：931 |
Complete-flight Ray-path-type CO2 CNC Laser Cutting Machines are first class products in the world, uniquely possess F axis controlled by automatic programming, cantilevered structure and Chinese interface. The machine has features of low cost in integral operation, high machining efficiency, high accuracy and small space occupied and human being friendly etc. |
|
| >> ZYZ-118中梁组合钻床系列Technical parameters |
|
Multi-spindle number axlebox
|
12Axis
（Horizontal）
|
2Axis
（Horizontal）
|
8Axis
（Vertical）
|
6Axis
（Vertical）
|
|
Bit diameter
|
φ23.5 mm
|
φ65 mm
|
φ23.5 mm
|
φ22 mm
|
|
Force on hand
|
8
|
2
|
2
|
2
|
|
Drilling depth
|
28 mm
|
30 mm
|
52 mm
|
18 mm
|
|
Bored volume
|
12(9)
|
2
|
8
|
6
|
|
Spindle speed
|
125 rpm
|
46 rpm
|
125 rpm
|
125 rpm
|
|
Dynamic first trip
|
630 mm
|
630 mm
|
630 mm
|
630 mm
|
|
Main Motor Power
|
5.5×8 Kw
|
5.5×2 Kw
|
7.5×2 Kw
|
5.5×2 Kw
|
|
Hydraulic motor power
|
3×8 Kw
|
3×2 Kw
|
3×2 Kw
|
3×2 Kw
|
|
Power
|
380V 50Hz
|
380V 50Hz
|
380V 50Hz
|
380V 50Hz
|
|
Total power
|
150 Kw
|
150 Kw
|
150 Kw
|
150 Kw
|
|
Hydraulic System
|
4 Mpa
|
4 Mpa
|
4 Mpa
|
4 Mpa
|
|
Dynamic Speed
|
3 m/min
|
3 m/min
|
3 m/min
|
3 m/min
|
|
Advanced to the edge
|
5000 kg
|
5000 kg
|
5000 kg
|
5000 kg
|
|
Workpiece transmission speed
|
10-13 m/min
|
10-13 m/min
|
10-13 m/min
|
10-13 m/min
|
|
Raceway height above the ground
|
912 mm
|
912 mm
|
912 mm
|
912 mm
|
|
Host outline size
|
16110×5200×3755 mm
|
16110×5200×3755 mm
|
16110×5200×3755 mm
|
16110×5200×3755 mm
|
|
Net
|
100About t
|
100About t
|
100About t
|
100About t
|
|
