GDC16/20/25d系列CNC gantry Milling and drilling machine |
| |
|
| >> GDC16/20/25d系列Product Preview Keys：
Hits：854 |

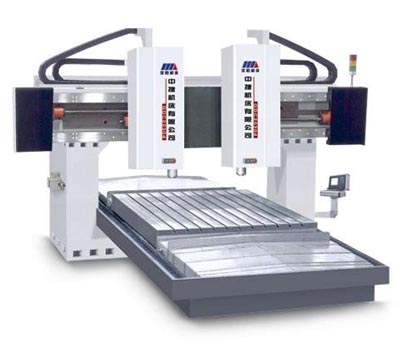

| GDC series machines are designed with gantry-type frame layout, the column and cross beam are connected fixedly by assembled steel plates. The three axes of the machine are driven by ball screws of high accuracy. X-axis and Y-axis adopt precision linear rollers to maximization satisfy the requirements of drilling. |
|
| >> GDC16/20/25d系列Technical parameters |
|
|
GDC1012
|
GDC1016
|
|
Workstable
|
Available dimension of worktable
|
1000×1250mm
|
1000×1600mm
|
|
Distance between two columns
|
1570mm
|
1570mm
|
|
Max. load capacity
|
1500kg
|
1550kg
|
|
Dimension of T-slots
|
M16×80 mm×N
|
M16×108 mm×N
|
|
Maching range
|
Worktable travel-X-axis
|
No tool magazine
|
1250mm
|
1600mm
|
|
With tool magazine
|
1150mm
|
1500mm
|
|
Max. travel-Y-axis
|
1000mm
|
1000mm
|
|
Headstock travel-Z-axis
|
400mm
|
400mm
|
|
Distance of spindle nose to table surface
|
Max.
|
500mm
|
500mm
|
|
Min.
|
100mm
|
100mm
|
|
Spindle
|
Spindle taper(7:24)
|
BT40
|
BT40
|
|
Spindle speed range
|
40-2500r/min
|
40-2500r/min
|
|
Max. spindle torque
|
94N.m
|
100N.m
|
100N.m
|
94N.m
|
100N.m
|
100N.m
|
|
Max. axial cutting force
|
8000N
|
8000N
|
|
Power of main motor
|
7kW
|
7.5kW
|
7.5kW
|
7kW
|
7.5kW
|
7.5kW
|
|
Max. diameter of drilling
|
φ32mm
|
φ32mm
|
|
Max. Diameter of tapping
|
Cast Iron
|
M24mm
|
M24mm
|
|
Steel
|
M20mm
|
M20mm
|
|
Feed
|
Cutting feed speed range
|
1-5000mm/min
|
1-5000mm/min
|
|
Raped traverse
|
X-axis
|
15m/min
|
15m/min
|
|
Y-axis
|
15m/min
|
15m/min
|
|
Z-axis
|
10m/min
|
10m/min
|
|
Tool magazine(optional)
|
Max. tool length
|
300mm
|
300mm
|
|
Type
|
Line type
|
No
|
Line type
|
Line type
|
No
|
Line type
|
|
Capacity
|
10N
|
10N
|
|
Positioning accuracy
|
According to national standark
|
X-axis
|
0.032mm
|
0.042mm
|
|
Y-axis
|
0.032mm
|
0.032mm
|
|
Z-axis
|
0.022mm
|
0.022mm
|
|
Repeatability
|
According to national standark
|
X-axis
|
0.018mm
|
0.018mm
|
|
Y-axis
|
0.018mm
|
0.018mm
|
|
Z-axis
|
0.012mm
|
0.012mm
|
|
Weight of machine
|
8000kg
|
9000kg
|
|
CNC system
|
SIEMENS
802D
|
SIEMENS
802C
|
FANUC
0i
|
SIEMENS
802D
|
SIEMENS
802C
|
FANUC
0i
|
|
