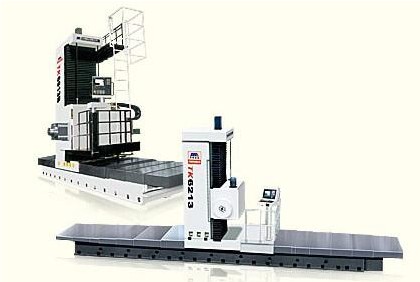

FBC系列CNC Floor type milling and boring machine |
| |
|
| >> FBC系列Product Preview Keys：
Hits：1139 |
CNC floor-type milling and boring machines and machining centers can be divided into two types according to different in intergrated headstock installed. i.e. machines with extended ram and machines with extended boring spindle. For the former type, CNC boring spindle is supplied inside ram to accomplish deep-hole drilling. The steel guide-ways provide the machine with high rigidity and retainability. They can be equipped with optional accessories such as CNC rotary worktable, facing head, right angle milling head and universal milling head, suitable for drilling, boring, reaming, turning, milling, threading etc. processes for large and middle-sized work-piece, in particular, they are the ideal equipments for machining large-sized work-pieces with deep-holes. |
|
| >> FBC系列Technical parameters |
|
|
TK6211
TH5211
|
TK6213
TH6213
|
TK6216
TH6216
|
TK6913B
TH6913B
|
TK6916B
|
TK6930×43
|
TK6930×43A
|
|
Dia. of spindle
|
110mm
|
130mm
|
160mm
|
130mm
|
160mm
|
-
|
-
|
|
Taper of spindle
|
ISO 7:24 No50
|
|
Dia. of milling spindle
|
-
|
221.44
|
260
|
221.44
|
260
|
-
|
-
|
|
Speed of spindle
|
10-2000
r/min
|
10-2000
r/min
|
10-1500
r/min
|
10-1500
r/min
|
10-1000
r/min
|
10-2000
r/min
|
10-2000
r/min
|
|
Max. Torque
|
1300N.m
|
2800N.m
|
3500N.m
|
2500N.m
|
3000N.m
|
813N.m
|
813N.m
|
|
Section area of ram
|
-
|
-
|
-
|
480×480mm
|
480×480mm
|
300×430mm
|
300×430mm
|
|
Travel of column(slide)X
|
4000(1000 increase）mm
|
|
Vertical travel of headstock (carrier) Y
|
1500mm
|
1600mm
|
2000(2500
option）mm
|
2000(2500、3000
option）mm
|
2000(2500、3000
option）mm
|
1500mm
|
1500mm
|
|
Travel of ram Z
|
-
|
-
|
-
|
700mm
|
700mm
|
1000mm
|
1000mm
|
|
Headstock swivel angle A
|
-
|
-
|
-
|
-
|
-
|
-
|
±15"
|
|
Column swivel angle B
|
-
|
-
|
-
|
-
|
-
|
-
|
±12"
|
|
Travel of spindle W
|
550mm
|
800mm
|
1000mm
|
700mm
|
700mm
|
-
|
-
|
|
Power of main motor
|
17/22.5kW
|
37/51kW
|
37/51kW
|
37/51k/W
|
37/51kW
|
22/30kW
|
22/30kW
|
|
Cutting feed
|
X、Y、Z
|
X,Y:1-6000mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X,Y:1-6000
mm/min
|
X:1-2000
Y:1-6000
Z:1-3000
mm/min
|
X:1-2000
Y:1-6000
Z:1-3000
mm/min
|
|
A、B
|
W:1-2000
r/min
|
W:1-3000
r/min
|
W:1-3000
r/min
|
Z,W:1-3000
r/min
|
Z,W:1-3000
r/min
|
-
|
A,B:0-1.5
r/min
|
|
Rapid traverse
|
X,Y:9 W:2.4m/min
|
X,Y:8 W:3
m/min
|
X,Y:9 W:3
m/min
|
X,Y:6 Z,W:3m/min
|
X,Y:6 Z,W:3 m/min
|
X,Y:10 Z:3.5m/min
|
X,Y:10 Z:3.5m/min
|
|
Magazine capacity
|
40
|
40
|
40
|
40
|
-
|
-
|
-
|
|
Shank specification
|
ISO7:24 JT50
|
|
Pin standard
|
LD50D
|
|
Positioning accuracy
|
|
|
X、Y、Z、W
|
X:0.032
Y,W:0.02mm
|
X:0.035/100
Y:0.020
W:0.02mm
|
X:0.032/
1000
Y:0.026
W:0.02mm
|
X,Y:0.026/
1000
Z,W:0.03/
Length mm
|
X:0.026/
1000
Y,Z,W:
0.026
mm
|
X:±0.015/
4000
Y,Z:±0.01/
Length mm
|
X:±0.015/
4000
Y,Z:±0.01/
Length mm
|
|
A、B
|
-
|
-
|
-
|
-
|
-
|
-
|
±10"sec
|
|
Repeatability
|
|
|
X、Y、Z、W
|
X:0.025
Y,W:0.016
mm
|
X:0.025/
1000
Y:0.020
W:0.018mm
|
X:0.025/
1000
Y:0.020
W:0.018mm
|
0.013/1000
mm
|
X,Y,Z,W:
0.015mm
|
X:±0.008
Y,Z:±0.005
mm
|
X:±0.008
Y,Z:±0.005
mm
|
|
A、B
|
-
|
-
|
-
|
-
|
-
|
-
|
±5"sec
|
|
Overall dimensions of machine (L×W×H)
|
8000×
2993×
4500mm
|
8600×4490
×4830mm
|
9300×5500×
5600mm
|
8400×3200
×5600mm
|
9000×3200
×5600mm
|
7800×3500×4558mm
|
|
Weight of machine
|
28000kg
|
34000kg
|
42000kg
|
31500/
34500kg
|
37000kg
|
28000kg
|
|
Total power capacity
|
50KVA
|
70KVA
|
85KVA
|
85KVA
|
85KVA
|
50KVA
|
|
CNC system
|
SIEMENS 840D
|
|
