PBC130f系列CNC horizontal milling and boring machine |
| |
|
| >> PBC130f系列Product Preview Keys：
Hits：976 |

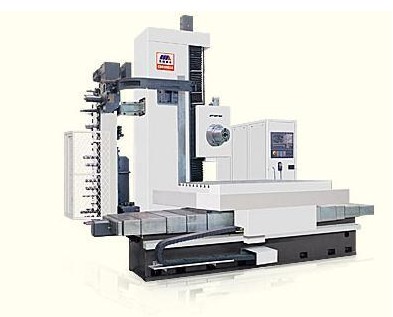

Machines of this series are of T-type layout with good rigidity and can realize control of six axes i.e. worktable transverse movement, column horizontal movement, worktable auto indexing and auto rotation, headstock vertical movement, spindle extention and optional NC facing head. Guide-ways of machines of this series adopt alloy steel with complete hardening. Imported rollers are used for side surface guiding and angular encoder is supplied for direct measurement of CNC worktable. Large torque of spindle is obtained by two-step gear-box. Tool magazine and complete-closed enclosure are available for option on user’s demand. Machines of this series are ideal equipments for machining box-type work-pieces with multi-holes of high accuracy of hole to hole distance
|
|
| >> PBC130f系列Technical parameters |
|
|
TKP6513
THP6513
|
TKQP6513B
THQP6513B
|
|
Table size
|
1400×1600mm(1600×1800,
1800×2000,2000×2000)mm
|
1000×1250(1250×1250,
1250×1400Option）mm
|
|
Max. Load on the table
|
10000kg
|
5000kg
|
|
Worktable And T Slot
|
28×9
|
22×7
|
|
Dia. of spindle
|
130mm
|
110mm
|
|
Taper of spindle
|
ISO7:24 No50
|
|
Speed of spindle
|
10-2000r/min
|
10-2000r/min
|
|
Max. Torque
|
2500N.m
|
1300N.m
|
|
Distance between spindle center and table top
|
100-1700mm
|
30-1530mm
|
|
Min distance between spindle end and table
|
50spindle extend mm
|
-
|
|
Transverse travel of table X
|
2000(3000)mm
|
2000(3000)mm
|
|
Vertical travel of headstock Y
|
1600(2000)mm
|
1500mm
|
|
Longitudinal travel of column Z
|
1600(2000)mm
|
1200(2000)mm
|
|
spindle travel W
|
800mm
|
550mm
|
|
Travel of quill Z1
|
-
|
-
|
|
Slide travel of facing plate U
|
200mm
|
140mm
|
|
Rotation of rotary table B
|
360°
|
|
Feed speed
|
X、Y、Z
|
1-6000mm/min
|
|
W、U
|
W,U:1-3000mm/min
|
W:1-2000 U:1-1000mm/min
|
|
B
|
0-1r/min
|
0-0.5r/min
|
|
Rapid speed
|
X、Y、Z
|
9m/min
|
|
W、U
|
3m/min
|
2.4m/min
|
|
B
|
1r/min
|
2.5r/min
|
|
Magazine capacity
|
40
|
|
Shank specification
|
ISO 7:24 JT50
|
|
Pin standark
|
LD50D
|
|
Power of main motor
|
22/30kW
|
17/22.5kW
|
|
Positioning accuracy
|
X、Y、Z
|
±0.008/overall（±0.005/overall, optional for direct measure）mm
|
|
B（4×90°）
|
±7.5"(±2")
|
|
Repeatability
|
X、Y、Z
|
±0.005(±0.0025optional for direct measure）mm
|
|
B（4×90°）
|
±2"
|
|
Overall dimensions of machine (L×W×H)
|
6900×6300×4700mm
|
5555×4155×4078mm
|
|
Weight of machine
|
35000/39000kg
|
21050/25050kg
|
|
CNC system
|
SIEMENS 840D(optional system 18i)
|
|
Total power capacity
|
70KVA
|
50KVA
|
|
