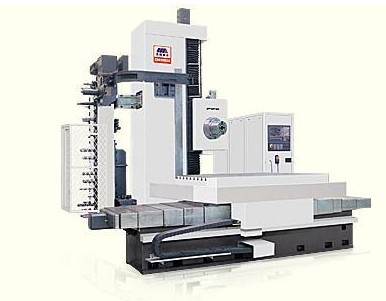

TK6513
|
TH6513
|
|
Table size
|
1400×1600(1600×1800,1800×2000，2000×2000optional）mm
|
|
Max. Load on the table
|
10000kg
|
|
Worktable And T Slot
|
28×79
|
|
Dia. of spindle
|
130mm
|
|
Taper of spindle
|
ISO7:24No50
|
|
Speed of spindle
|
10-2000r/min
|
|
Max. Torque
|
2500N.m
|
|
Distance between spindle center and table top
|
100-1700mm
|
|
Min distance between spindle end and table
|
50spindle extendmm
|
|
Transverse travel of table X
|
2000（3000）mm
|
|
Vertical travel of headstock Y
|
1600(2000)mm
|
|
Longitudinal travel of column Z
|
1600(2000)mm
|
|
spindle travel W
|
800mm
|
|
Travel of quill Z1
|
-
|
|
Slide travel of facing plate U
|
-
|
|
Rotation of rotary table B
|
360°
|
|
Feed speed
|
X、Y、Z
|
1-6000mm/min
|
|
W、U
|
W:1-3000mm/min
|
|
B
|
0-1r/min
|
|
Rapid speed
|
X、Y、Z
|
9m/min
|
|
W、U
|
W:3m/min
|
|
B
|
1r/min
|
|
Magazine capacity
|
40
|
|
Shank specification
|
ISO7:24 JT50
|
|
Pin standark
|
LD50D
|
|
Power of main motor
|
22/30kW
|
|
Positioning accuracy
|
X、Y、Z
|
±0.008/overall（±0.005/overall, optional for direct measure）mm
|
|
B（4×90°）
|
±7.5"(±2")
|
|
Repeatability
|
X、Y、Z
|
±0.005(±0.0025optional for direct measure）mm
|
|
B（4×90°）
|
±2"
|
|
Overall dimensions of machine (L×W×H)
|
6900×6300×4700mm
|
|
Weight of machine
|
35000/39000kg
|
|
CNC system
|
SIEMENS 840D(optional system 18i)
|
|
Total power capacity
|
70KVA
|
