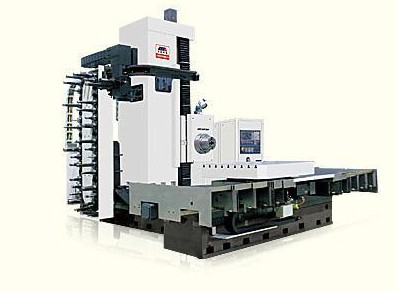

TK6511B
|
TH6511B
|
|
Table size
|
1000×1250(1250×1250,1250×1400Option）mm
|
|
Max. Load on the table
|
5000kg
|
|
Worktable And T Slot
|
22×7
|
|
Dia. of spindle
|
110mm
|
|
Taper of spindle
|
ISO7:24No50
|
|
Speed of spindle
|
10-2500(10-3000)r/min
|
|
Max. Torque
|
1300N.m
|
|
Distance between spindle center and table top
|
60-1560(30-1530)mm
|
|
Min distance between spindle end and table
|
350Zero Spindle
|
|
Transverse travel of table X
|
2000（3000）mm
|
|
Vertical travel of headstock Y
|
1500mm
|
|
Longitudinal travel of column Z
|
1200(2000)mm
|
|
spindle travel W
|
550mm
|
|
Travel of quill Z1
|
-
|
|
Slide travel of facing plate U
|
-
|
|
Rotation of rotary table B
|
360°
|
|
Feed speed
|
X、Y、Z
|
1-6000mm/min
|
|
W、U
|
W:1-2000mm/min
|
|
B
|
0-1.5r/min
|
|
Rapid speed
|
X、Y、Z
|
9m/min
|
|
W、U
|
2.4m/min
|
|
B
|
2.5r/min
|
|
Magazine capacity
|
40
|
|
Shank specification
|
ISO7:24 JT50
|
|
Pin standark
|
LD50D
|
|
Power of main motor
|
17/22.5(Continuous/30min)
|
|
Positioning accuracy
|
X、Y、Z
|
±0.008/The entire trip（±0.005/The entire trip，Direct measurement option）mm
|
|
B（4×90°）
|
±7.5"(±2")
|
|
Repeatability
|
X、Y、Z
|
±0.005(±0.0025Direct measurement option）mm
|
|
B（4×90°）
|
±2"
|
|
Overall dimensions of machine (L×W×H)
|
5555×4155×4078mm
|
|
Weight of machine
|
21050/25050kg
|
|
CNC system
|
SIEMENS 840D(OptionFANUCSystem18i)
|
|
Total power capacity
|
50KVA
|
