TPX6211/13系列Floor type milling and boring machine |
| |
|
| >> TPX6211/13系列Product Preview Keys：
Hits：1190 |

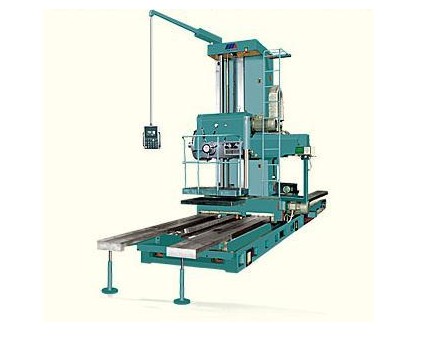

Floor type milling & boring machine Model TPX6211, spindle diameter 0f 110mm is modlfied product of horizontal milling & boring machines, is ideal equipment applicable for machining large size parts. It is used for drilling, counterboring, boring, reaming, spot facing. Threading and milling large flat surface, etc. |
|
| >> TPX6211/13系列Technical parameters |
|
|
T(P)X6211
|
T(P)X6211×30
|
T(P)X6211×59
|
TPX6213
|
T(P)X6213×56
|
|
Boring spindle diameter
|
110mm
|
130mm
|
|
Spindle taper
|
Morse No6(optional ISO7：24 No50)
|
Metric 80(optionalISO7：24 No50)
|
|
Max. spindle torque
|
1225N.m
|
3136N.m
|
|
Max. spindle thrust
|
12250N
|
31360N
|
|
Max. traverse of boring spindle
|
600mm
|
900mm
|
|
Number of spindle speeds
|
22
|
24
|
|
Range of spindle speeds
|
8-1000r/min
|
4-800r/min
|
|
Travel of headstock
|
160mm
|
1600mm
|
|
Travel of facing slide
|
180mm
|
250mm
|
|
Range of spindle headstock and table feeds pet spindle revolution
|
0.04-6/0.01-1.88mm/r
|
0.05-8/0.01-2mm/r
|
|
Travel of main drive motor
|
2000mm
|
3100mm
|
5900mm
|
2850mm
|
5650mm
|
|
Power of main drive motor
|
7.5kW
|
7.5kW
|
7.5kW
|
15kW
|
15kW
|
|
Overall dimensions(L×W×H)
|
4922×2214
×3770mm
|
6022×2214
×3770mm
|
8852×2214
×3770mm
|
6072×2932
×4075mm
|
9970×2932
×4075mm
|
|
Weight of machine
|
18900kg
|
20000kg
|
25000kg
|
25000kg
|
35100kg
|
|
