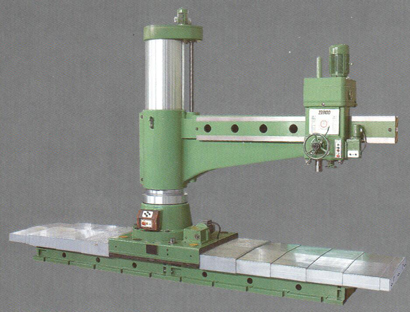

Z33系列universal radial drilling machine

>> Z33系列Product Preview  Keys:  Hits:4916

China Czechoslovakia-the cradle of manufacturing radial drills. China Czechoslovakia brand radial drills continuously won the “Golden Medal” awarded by the state of P.R.C for its superior quality. The market share in international radial drills market is about 50%. China Czechoslovakia radial drills reflect new era of machinery. Our factory has accumulated rich experience in the designing and manufacturing radial drills for more than fifty years, with the biggest scale and special technology in the world for manufacturing process and equipment. The excellent products are widely used for drilling, counter boring, reaming, spot facing and tapping. Main parts and key parts are made by high strength cast and special steel material. Heat treatment made by first-class equipment, ensuring durability. Machining is made by means of specialized equipment, to ensure basic parts with superior quality. Clamping for assemblies and speed-change of spindle is achieved by hydraulic power, and is sensitive and reliable. 16 steps of spindle speed and feed brings about economic and high-efficiency cutting. Mechanical and electrical controls are centralized on the headstock, with easy and rapid operation. New painting technology and improved outward appearance reflects the specialty of machines.

>> Z33系列Technical parameters

Z33100
Z33125×120A
Max drilling diameter
100mm
125mm
Distance between spindle axis and column
Max
3150mm
4000mm
Min
570mm
600mm
Distance spindle nose and working surface of base plate
Max
3105mm
3455mm
Min
1355mm
1645mm
Spindle travel
500mm
560mm
Spindle taper
6#
Metrie80
Range of spindle speeds
8-1000r/min
6.3-800r/min
Number of spindle speeds
22
22
Range of spindle feeds
0.06-3.2mm/r
0.06-3.2mm/r
Number of spindle feeds
16
16
Table size
-
-
Trave of spindle head
2580mm
3400mm
Power of main motor
15kW
18.5kW
Vertical travel of quill on column
-
-
Tilting angle of spindle head
-
-
Distance of saddle travel
4000mm
12000mm
Net weight
22000kg
50000kg
Overall dimensions(L×W×H)
7160×1540×4780mm
16900×2200×5285
