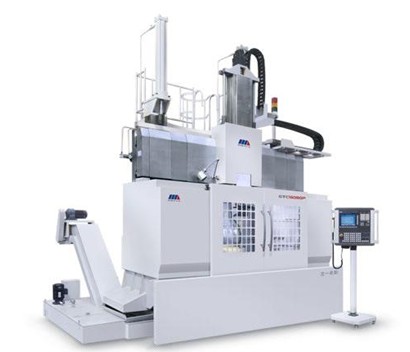

GTC160/90系列Vertical CNC Lathes |
| |
|
| >> GTC160/90系列Product Preview Keys：
Hits：1081 |
With automatic tool changing device of magazine type,GTC series CNC vertical lathes are suitable for production in lots. They can perform automatically in high efficiency all the functions of CNC vertical lathe such as turning hole, cylindrical surface, taper and arc surfaces etc.. |
|
| >> GTC160/90系列Technical parameters |
|
|
GTC16090
|
|
Spindle data
|
Model of control systeeWork table diameter
|
1250 mm
|
|
Max.swing
|
1600 mm
|
|
Max.turning diameter
|
1600 mm
|
|
Max.turning height
|
1200 mm
|
|
Max.workpiece weight
|
6000 kg
|
|
Max.torque
|
10960 Nm
|
|
Ram head
|
Vertical travel
|
900 mm
|
|
Horizontal travel
|
-100-+1600 mm
|
|
Ram cross section
|
200×200 mm
|
|
Cutting tool section
|
40×40 mm
|
|
Magazine
|
Positons of turning magazine
|
12
|
|
Max.weight of each tool holder
|
45 kg
|
|
Positions of milling magazine
|
-
|
|
Feed
|
Cutting feed
|
0.01-50 mm/s
|
|
Rapid feed
|
8 m/min
|
|
Speed of work table
|
1-312 r/min
|
|
Speed of power head
|
-
|
|
Speed of C axis
|
-
|
|
Speed steps of work table
|
2
|
|
Vertical travel of cross beam
|
250×2 mm
|
|
Motor
|
Power of main motor
|
37/45 kW
|
|
Power of horizontal feed motor
|
7 kW
|
|
Power of vertical feed motor
|
7 kW
|
|
Power of power head motor
|
-
|
|
Power of C axis motor
|
-
|
|
Position accuracy
|
IT6
|
|
Surfacefinish
|
Ra1.6μm
|
|
weight
|
20000 kg
|
|
Dimensions
|
6500×4800×5500 mm
|
|
Model of control system
|
FANUC 0i-TC
|
|
