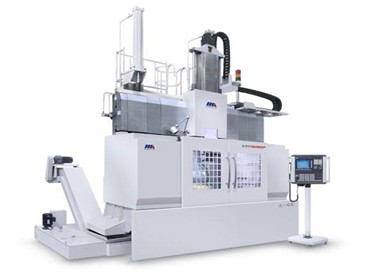

GTC200110 is Vertical turning and milling center which equipped with milling tools magazine. Except for performing the turning functions of GTC series, it can centralize the turning, milling and drilling etc. after one time fixing the workpiece. It's suitable for rough and finish machining complicated parts such as motor shell, wheel, valve body, flange, big size motor base and pump body etc. Which need centralized multi-process machining. |
|
| >> GTC200100m系列Technical parameters |
|
|
GTC20090
|
GTC250110
|
GTC200110m
|
|
Spindle data
|
Model of control systeeWork table diameter
|
1600mm
|
2000mm
|
1600mm
|
|
Max.swing
|
2000mm
|
2500mm
|
2000mm
|
|
Max.turning diameter
|
2000mm
|
2500mm
|
2000mm
|
|
Max.turning height
|
1600mm
|
2000mm
|
1600mm
|
|
Max.workpiece weight
|
8000kg
|
10000kg
|
8000kg
|
|
Max.torque
|
20000Nm
|
26000Nm
|
19000Nm
|
|
Ram head
|
Vertical travel
|
900mm
|
1200mm
|
1100mm
|
|
Horizontal travel
|
-150-+2050mm
|
-100-+2800mm
|
-3010-+2650mm
|
|
Ram cross section
|
220×220mm
|
240×240mm
|
240×240mm
|
|
Cutting tool section
|
40×40mm
|
40×40mm
|
40×40mm
|
|
Magazine
|
Positons of turning magazine
|
12
|
12
|
12
|
|
Max.weight of each tool holder
|
45kg
|
50kg
|
50kg
|
|
Positions of milling magazine
|
-
|
-
|
40
|
|
Feed
|
Cutting feed
|
0.01-50mm/s
|
0.01-40mm/s
|
0.01-50mm/s
|
|
Rapid feed
|
8m/min
|
8m/min
|
8m/min
|
|
Speed of work table
|
1-254r/min
|
1-180r/min
|
1-256r/min
|
|
Speed of power head
|
-
|
-
|
18-1800r/min
|
|
Speed of C axis
|
-
|
-
|
0-3r/min
|
|
Speed steps of work table
|
2
|
2
|
3
|
|
Vertical travel of cross beam
|
250×4mm
|
250×4mm
|
280×3mm
|
|
Motor
|
Power of main motor
|
45/55kW
|
60/75kW
|
60/75kW
|
|
Power of horizontal feed motor
|
7kW
|
7kW
|
7kW
|
|
Power of vertical feed motor
|
7kW
|
7kW
|
7kW
|
|
Power of power head motor
|
-
|
-
|
15/18.5kW
|
|
Power of C axis motor
|
-
|
-
|
3kW
|
|
Position accuracy
|
IT6
|
IT6
|
IT6
|
|
Surfacefinish
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
|
weight
|
26000kg
|
50000kg
|
40000kg
|
|
Dimensions
|
7200×5500×5800
mm
|
10600×5600×7163
mm
|
10730×6075×6938
mm
|
|
Model of control system
|
FANUC 0i-TC
|
FANUC 0i-TC
|
FANUC 18i-T
|
|
