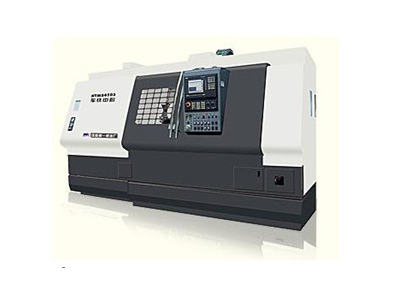

HTM54103
|
|
On the largest diameter rotary bed
|
540mm
|
|
Diameter of the largest processing
|
540mm
|
|
Turning the greatest length
|
1030mm
|
|
X/Y/Z axis trip
|
485/140/1055mm
|
|
B/C shaft
|
205/360°
|
|
Spindle power / torque (nominal)
|
18.3/350kW/Nm
|
|
Before diameter spindle bearings
|
140mm
|
|
Via spindle diameter
|
73mm
|
|
Spindle first models
|
A2-8
|
|
Chuck spindle diameter
|
254mm
|
|
Tailstock body trip
|
590mm
|
|
Tailstock diameter / itinerary
|
100/130mm
|
|
Tool maximum torque spindle
|
100Nm
|
|
The maximum tool spindle speed
|
7000r/min
|
|
Bearing motor torque B
|
14.7Nm
|
|
Tool storage capacity
|
20Put
|
|
Maximum length Tool
|
250mm
|
|
Maximum size of the installation tool
|
□25×25mm
|
|
Tool-to-tool tool change time
|
2s
|
|
The largest hole diameter
|
30mm
|
|
Tapping the largest diameter
|
M22mm
|
|
Maximum diameter rod cutter
|
40mm
|
|
Diameter of the largest Endmills
|
80mm
|
|
X/Y/Z fast axial velocity
|
30/15/20m/min
|
|
X/Y/Z/C/B axis positioning accuracy
|
0.012/0.012/0.02mm
|
|
X/Y/Z/C/B axis repetitive positioning accuracy
|
0.006/0.006/0.008mm
|
|
C/B axis positioning accuracy
|
40"/±4"s
|
|
C/B axis repetitive positioning accuracy
|
28"/±1.5"s
|
|
Precision Machining
|
IT6
|
|
Surface roughness
|
Ra1.6μm
|
|
Weighing machine
|
7500kg
|
|
Machine dimension（L×W×H）
|
4000/2450/2800mm
|
|
NC system
|
SIEMENS840D
|
