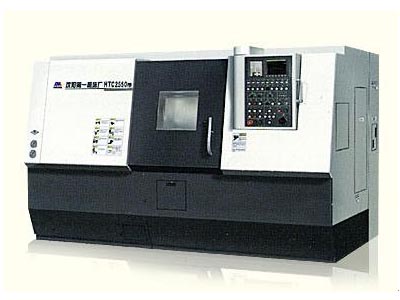

HTC2550m系列horizontal turning center |
| |
|
| >> HTC2550m系列Product Preview Keys：
Hits：1499 |
HTC2550m can realize turning, drilling, threading and milling due to utilizing 3 axes technology. They are used for machining chucking part, shaft and bar material from a very substantial variety of metal and other material. Thanks to optimum arrangement and configuration of main spindle, bed, slide, and tailstock, the high rigidity can be achieved. The machining accuracy is up to IT6
|
|
| >> HTC2550m系列Technical parameters |
|
Turning diameter of the largest
|
250mm
|
|
Maximum diameter of the workpiece rotary
|
550mm
|
|
Turning the greatest length
|
500mm
|
|
X axis trip
|
230mm
|
|
Z axis trip
|
635mm
|
|
Spindle speed
|
30-4500rpm
|
|
Rated main motor / Maximum Power
|
11/15kW
|
|
Rated main motor / maximum torque
|
141/191N.m
|
|
Fast Mobile (X)
|
36m/min
|
|
Fast Mobile (Z)
|
36m/min
|
|
The median for carrier
|
12
|
|
Tools install size (standard)
|
VDI130,□20/φ32mm
|
|
C-axis maximum speed
|
300r/min
|
|
Dynamic Tool maximum speed
|
6000r/min
|
|
Machine site
|
2984×1760×1780mm
|
|
Machine weight
|
4000kgf
|
|
Control System
|
FANUC 0i-T
|
|
