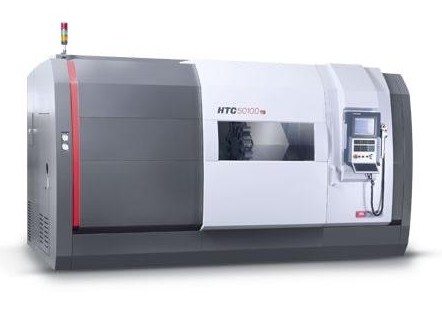

This machine tool is a new product developed by ourselves introducing Germany advanced technology. It features high accuracy, high rigidity and high speed. The bed and saddle adopt THK line guideway of Japan to enhance the ability of supporting static and dynamic load. It runs smoothly and rapidly. Assuring the geometrical accuracy and surface quality, meantime it improves productivity. It is indispensable device for modern high speed cutting and finish machining. |
|
>> HTC20/32系列Technical parameters |
|
HTC2050ms
Spindle
|
HTC2050
Single Spindle
|
HTC2050
Belt stalls
|
HTC3250
|
Chuck diameter
|
φ210mm
|
φ210mm
|
φ210mm
|
φ210mm
|
Max.swing over bed
|
φ450mm
|
φ450mm
|
φ450mm
|
φ510mm
|
Max.swing over slide
|
φ200mm
|
φ250mm
|
φ250mm
|
φ280mm
|
Max.machining diameter
|
φ260mm
|
φ260mm
|
φ260mm
|
φ320mm
|
Max.cutting length
|
380mm
|
500mm
|
500mm
|
500mm
|
Spindle bore diameter
|
φ50mm
|
φ55(φ65)mm
|
φ55mm
|
φ55(φ45)mm
|
Spindle nose
|
A2-5
|
A2-5(A2-6)
|
A2-5
|
A2-5(A2-6)
|
Max.cutting length of staftworkpieces
|
360mm
|
500mm
|
500mm
|
500mm
|
Max.travel of X-axis
|
150mm
|
150mm
|
150mm
|
165mm
|
Max.travel of Z-axis
|
600mm
|
600mm
|
600mm
|
600mm
|
Diameter of tailstock quill
|
φ80mm
|
φ80mm
|
φ80mm
|
φ80mm
|
Travel of tailstock quill
|
100mm
|
100mm
|
100mm
|
100mm
|
Taper of tailstock quill
|
Morse No.5
|
Morse No.5
|
Morse No.5
|
Morse No.5
|
Range of spindle speed
|
45-6000rpm
|
|
|
|
Single spindle headstock
|
AC main drive
|
|
45-4000rpm
|
|
45-4000rpm
|
frequency-
change motor
|
|
240-3400rpm
|
|
240-3400rpm
|
Shift change headstock
|
|
|
180-2600rpm
|
|
Motor torque for X/Z axis
|
8/8Nm
|
7/7Nm
|
7/7Nm
|
7/7Nm
|
Rapid speed (X/Z axis)
|
10/12m/min
|
16/20m/min
|
16/20m/min
|
20/20m/min
|
No.of tool stations
|
8Public spaces
|
8Public spaces
|
8Public spaces
|
8Public spaces
|
Size of too shank
|
20×20mm
|
20×20mm
|
20×20mm
|
25×25mm
|
Diameter of tool hole
|
φ32mm
|
φ32mm
|
φ32mm
|
φ40mm
|
Positioning accuracy of tool turret
|
±4"
|
±4"
|
±4"
|
±4"
|
Repeatability of tool turret
|
±1.6"
|
±1.6"
|
±1.6"
|
±1.6"
|
Workpiece accuracy
|
IT6
|
IT6
|
IT6
|
IT6
|
Main motor power
|
15/25kW
|
11/15kW
|
11/15kW
|
11/15kW
|
X/Z-axis repeatability
|
0.008/0.012mm
|
0.008/0.012mm
|
0.008/0.012mm
|
0.008/0.012mm
|
X/Z-axis repeatability
|
0.006/0.007mm
|
0.006/0.007mm
|
0.006/0.007mm
|
0.006/0.007mm
|
Roughness
|
Ra0.8μm
|
Ra0.8μm
|
Ra0.8μm
|
Ra0.8μm
|
Overall dimensions(L×W×H)
|
3730×1730×1710mm
|
3730×1730×1710mm
|
3730×1730×1710mm
|
3730×1730×1710mm
|
Machine weight (net weight)
|
5000kg
|
5000kg
|
5000kg
|
5000kg
|
|
