CA6136-2
|
CA6236-2
|

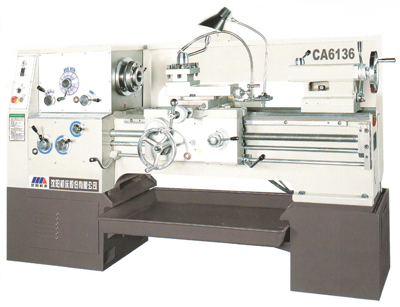

CA6136
|
CA6236
|
|
Max. swing diameter over bed
|
φ360 mm
|
φ360 mm
|
|
Max. swing diameter over carriage
|
φ210 mm
|
φ210 mm
|
|
Swing in the gap
|
|
φ500 mm
|
|
φ500 mm
|
|
Availadle length in gap
|
|
160 mm
|
|
160 mm
|
|
Max. turning length
|
650/850 mm
|
650/850 mm
|
|
Spindle bore
|
φ53 mm
|
φ53 mm
|
|
Spindle nose
|
C6 mm
|
C6 mm
|
|
Forward grades
|
12STAGE45-2000 r/min
|
12STAGE37-1600 r/min
|
|
Reverse grades
|
12Anti-level45-2000 r/min
|
6Anti-level102-1570 r/min
|
|
No. Of cross feed
|
20 mm
|
40 mm
|
|
No. Of longitudinal feed
|
20 mm
|
40 mm
|
|
Range of cross feed
|
0.04-0.88 mm
|
0.04-1.28
|
|
Range of longitudinal feed
|
0.05-1.12 mm
|
0.05-1.6 mm
|
|
Thread kinds
|
Dukes
|
Dukes
|
Englishmen
|
Modulus
|
Drive Festival
|
|
No. of threads
|
19Species
|
19
|
29
|
14
|
24
|
|
Range of turning threads
|
0.5-10 mm
|
0.5-10 mm
|
1 3/4-40
1/n" mm
|
0.25-5 mm
|
3 1/2-80 π/n"
|
|
Travel of cross slide
|
200 mm
|
200 mm
|
|
Travel of compound rest
|
120 mm
|
120 mm
|
|
Diameter of tailstock quill
|
55 mm
|
55 mm
|
|
Travel of tailstock quill
|
140 mm
|
140 mm
|
|
Main motor power
|
4 kW
|
4 kW
|
|
Machine weight (N/G weight)
|
1380/2350 kg
|
1450/2450 kg
|
1400/2450 kg
|
1450/2500 kg
|
|
Overall dimensions (LXWXH)
|
750 mm
1000 mm
|
1992×1000×1170 mm
2242×1000×1170 mm
|
|
Packing case dimensions (LXWXH)
|
750 mm
1000 mm
|
2300×1300×1595 mm
2550×1300×1595 mm
|
