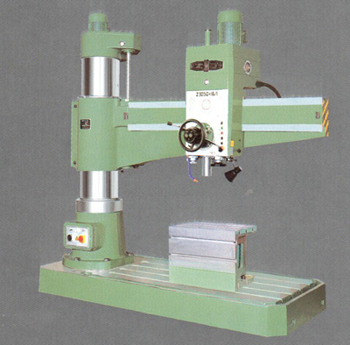

China Czechoslovakia-the cradle of manufacturing radial drills. China Czechoslovakia brand radial drills continuously won the “Golden Medal” awarded by the state of P.R.C for its superior quality. The market share in international radial drills market is about 50%. China Czechoslovakia radial drills reflect new era of machinery. Our factory has accumulated rich experience in the designing and manufacturing radial drills for more than fifty years, with the biggest scale and special technology in the world for manufacturing process and equipment. The excellent products are widely used for drilling, counter boring, reaming, spot facing and tapping. Main parts and key parts are made by high strength cast and special steel material. Heat treatment made by first-class equipment, ensuring durability. Machining is made by means of specialized equipment, to ensure basic parts with superior quality. Clamping for assemblies and speed-change of spindle is achieved by hydraulic power, and is sensitive and reliable. 16 steps of spindle speed and feed brings about economic and high-efficiency cutting. Mechanical and electrical controls are centralized on the headstock, with easy and rapid operation. New painting technology and improved outward appearance reflects the specialty of machines. |
|
| >> Z30系列Technical parameters |
|
|
Z3040×12/1
|
Z3040×16/1
|
Z3050×16/1
|
Z3063×20/1
|
Z3080×25
|
Z30100×31
|
Z30125×40
|
|
Max
drilling
diameter
|
40mm
|
40mm
|
50mm
|
63mm
|
80mm
|
100mm
|
125mm
|
|
Distance between spindle axis and column
|
Max
|
1250mm
|
1600mm
|
1600mm
|
2000mm
|
2500mm
|
3150mm
|
4000mm
|
|
Min
|
350mm
|
350mm
|
350mm
|
450mm
|
500mm
|
570mm
|
600mm
|
|
Distance spindle
nose and working surface
of base plate
|
Max
|
1250mm
|
1250mm
|
1220mm
|
1600mm
|
2000mm
|
2500mm
|
2500mm
|
|
Min
|
350mm
|
350mm
|
320mm
|
400mm
|
550mm
|
750mm
|
750mm
|
|
Spindle
travel
|
315mm
|
315mm
|
315mm
|
400mm
|
450mm
|
500mm
|
560mm
|
|
Spindle
taper
|
4#
|
4#
|
5#
|
5#
|
6#
|
6#
|
Metrie 80
|
|
Range of
spindle
speeds
|
25-2000
r/min
|
25-2000
r/min
|
25-2000
r/min
|
25-1600
r/min
|
16-1250
r/min
|
8-1000
r/min
|
6.3-800
r/min
|
|
Number of
spindle
speeds
|
16
|
16
|
16
|
16
|
16
|
22
|
22
|
|
Range of
spindle
feeds
|
0.04-3.20
mm/r
|
0.04-3.20
mm/r
|
0.04-3.20
mm/r
|
0.04-3.20
mm/r
|
0.04-3.20
mm/r
|
0.06-3.2
mm/r
|
0.06-3.2
mm/r
|
|
Number of
spindle
feeds
|
16
|
16
|
16
|
16
|
16
|
16
|
16
|
|
Table
size
|
500×630
mm
|
500×630
mm
|
500×630
mm
|
630×800
mm
|
800×
1000mm
|
800×
1250mm
|
800×
1250mm
|
|
Trave of
spindle
head
|
900mm
|
1250mm
|
1250mm
|
1550mm
|
2000mm
|
2580mm
|
3400mm
|
|
Power of
main motor
|
3kW
|
3kW
|
4kW
|
5.5kW
|
7.5kW
|
15kW
|
18.5kW
|
|
Vertical
travel of
quill on
column
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Tilting
angle of
spindle
head
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Distance
of saddle
travel
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Net weight
|
3000kg
|
3500kg
|
3500kg
|
7000kg
|
11000kg
|
20000kg
|
28500
|
|
Overall
dimensions
(L×W×H）
|
2150×1070
×2840mm
|
2500×1070 ×2840mm
|
2500×1070
×2840mm
|
3080×1250
×3291mm
|
3730×1400
×4025mm
|
4780×1630
×4600mm
|
5910×2000
×5120mm
|
|
