PLATINO1530HS系列laser cutting machine |
| |
|
| >> PLATINO1530HS系列Product Preview Keys：
Hits：5626 |

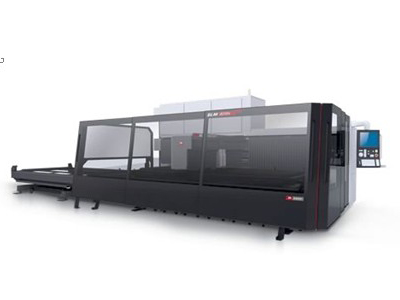

PLATINO series Complete-flight Ray-path-type CO2 CNC Laser Cutting Machines are first class products in the world, uniquely possess F axis controlled by automatic programming, cantilevered structure and Chinese interface. The machine has features of low cost in integral operation, high machining efficiency, high accuracy and small space occupied and human being friendly etc. |
|
| >> PLATINO1530HS系列Technical parameters |
|
Axis strokes
|
|
|
X-axis
|
3000 mm
|
|
Y-axis
|
1500 mm
|
|
Z-axis
|
150 mm
|
|
Maximum workpiece
|
750 kg
|
|
Maximum combined axis speed
|
140 m/min
|
|
Acceleration of X and Y axis
|
1.2 kg
|
|
Accuracy
|
|
|
Linear axis resolution
|
0.001 mm
|
|
Positioning accuracy (Pa)
|
0.03(according to VDI 3441 standards; complete stroke length) mm
|
|
Repeatability (Ps)
|
0.03(according to VDI 3441 standards; complete stroke length) mm
|
|
Kerf width
|
≤0.2mm（sheet thickness is 5mm）
|
|
Kerf roughness (Ra)
|
≤6.3μm（sheet thickness is 5mm）
|
|
Cooling system of Laser
|
Internal cycling
|
|
Laser Generator
|
PL2500TF、PL3000TF、CP4000
|
|
Electricity consumption
|
47、50、67 kW
|
|
Standard laser power
|
2500、3000、4000 W
|
|
Laser beam length
|
10.6μm
|
|
Mode of laser beam
|
TEM00/01
|
|
Frequency of laser beam grating
|
100HZ-10KHZ
|
|
Consumption of gas
|
20L/H
|
|
Consumption of assistant gas（O2）
|
1800L/H
|
|
Consumption of compressed air
|
48M3/H
|
|
Cutting capability
|
|
|
Mild steel （O2）
|
18、20、22 mm
|
|
Stainless steel （N2）
|
8、10、12 mm
|
|
Aluminum alloy （N2）
|
5、6、10 mm
|
|
Overall dimensions
|
6.3×3.5×2.5 m
|
|
Weight (basic machine)
|
10000 kg
|
|
