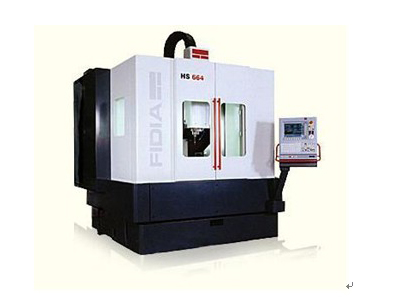

HS664系列high speed machining center

>> HS664系列Product Preview  Keys:  Hits:5256

High speed milling center model HS664 are machines with fixed machine bed and fixed worktable. The design of wide guide-ways and low gravity center provide high rigidity for machine, suitable for high speed movement of linear axis. Precision linear rollers and ball screws are used for the movement of coordinates. With adoption of NC driving technology, the speed of the machine can be increased from 0 to 30m/min within 0.1 sec. The key components of the machine such as motor spindle are imported from Italy to meet high speed requirement of 4000rpm for spindle. Machine with three axes or four axes are avaliable for selecting and adjusting on user's demand, five axes fuction can be realized in the case the rotary worktable is supplied. They have original performance for machining work-pieces with material of alloy aluminum, graphite, harden steel, super hard alloy, copper electrode etc., suitable for machining thin-wall work-pieces and moulds with nearly polishing finishing surface.

>> HS664系列Technical parameters

Travel of line spindle

X

Y

Z



600mm

560mm

400mm

Feed of line spindle



30Folds



Magazine



20



Spindle







Speed



22000Rpm

36000Rpm

Max. power



16kW

19kW

Tool shank



HSK50E

HSK50E

table(Three dimensional programming software)







Size

1000×550mm

Max. mass

700kg

In sets revolves in clines the work table (5 axes linkages)







Worktabloe diameter

400 mm

Most greatly revolves straight micro

565 mm

A-axis travel

-110°/+105°

C-axis travel

360°

main optional



Devices for prosetting tools

Devices for presetting tools

Suction system for graphite dust

Suction system for graphite dust

Rotary table

Rotary tables

CNC system

Digitizing

Three dimensional programming software

CAM 3D HI-MILL
