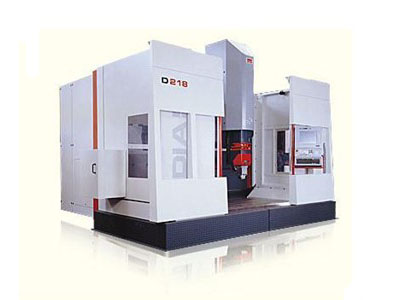

D 218/318/418系列high speed machining center

>> D 218/318/418系列Product Preview  Keys:  Hits:4265

High speed milling center model D165 are machines with fixed machine bed and fixed worktable. The design of wide guide-ways and low gravity center provide high rigidity for machine, suitable for high speed movement of linear axis. Precision linear rollers and ball screws are used for the movement of coordinates. With adoption of NC driving technology, the speed of the machine can be increased from 0 to 30m/min within 0.1 sec. The key components of the machine such as motor spindle are imported from Italy to meet high speed requirement of 4000rpm for spindle. Machine with three axes or four axes are avaliable for selecting and adjusting on user's demand, five axes fuction can be realized in the case the rotary worktable is supplied. They have original performance for machining work-pieces with material of alloy aluminum, graphite, harden steel, super hard alloy, copper electrode etc., suitable for machining thin-wall work-pieces and moulds with nearly polishing finishing surface.

>> D 218/318/418系列Technical parameters

Travel of line spindle

X

Y

Z



1000mm

600mm

500mm

Feed of line spindle



30Folds



Magazine



20



Spindle







Speed

24000(Rpm)

36000(Rpm)

36000(Rocker±25°)Rpm

Max. power

20 kW

19 kW

19 kW

Tool shank

HSK63A/E

HSK50E

HSK50E

Table







Size

1400×815 mm

1400×815 mm

1400×815 mm

Max. mass

1500 kg

1500 kg

1500 kg

Main optional








Devices for presetting tools

Devices for presetting tools

Suction system for graphite dust

Suction system for graphite dust

Rotary table

Rotary tables

CNC system

Digitizing

Thgree dimensional programming software

CAM 3D HI-MILL
