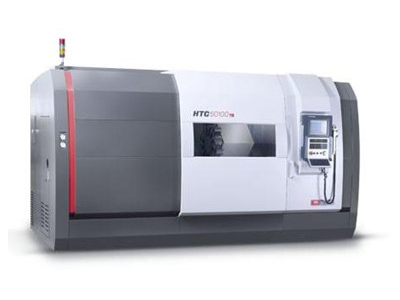

HTC/1608系列horizontal CNC lathes |
| |
|
| >> HTC/1608系列Product Preview Keys：
Hits：6134 |
This machine tool is a new product developed by ourselves introducing Germany advanced technology. It features high accuracy, high rigidity and high speed. The bed and saddle adopt THK line guideway of Japan to enhance the ability of supporting static and dynamic load. It runs smoothly and rapidly. Assuring the geometrical accuracy and surface quality, meantime it improves productivity. It is indispensable device for modern high speed cutting and finish machining. |
|
| >> HTC/1608系列Technical parameters |
|
|
HTC1608
|
|
Chuck diameter
|
φ165mm
|
|
Max.swing over bed
|
φ480mm
|
|
Max.swing over slide
|
φ380mm
|
|
Max.machining diameter
|
φ160mm
|
|
Max.cutting length
|
80mm
|
|
Spindle bore diameter
|
φ40mm
|
|
Spindle nose
|
A2-4
|
|
Spindle speed
|
100-5000r/min
|
|
Max.cutting length of shaft workpieces
|
80mm
|
|
Max.travel of X axis
|
300mm
|
|
Max.travel of Z axis
|
220mm
|
|
Motor torque for X/Z axis
|
6/6Nm
|
|
Rapid speed(X/Z axis)
|
16/16m/min
|
|
No.of tool stations
|
8工位
|
|
Size of tool shank
|
20×20mm
|
|
Diameter of tool hole
|
φ25mm
|
|
Positioning accuracy of tool turret
|
±4"
|
|
Repeatability of tool turret
|
±1.6"
|
|
Workpiece accuracy
|
IT6
|
|
Main motor power
|
5.5/7.5kW
|
|
X/Z-axis positioning accuracy
|
0.008/0.012mm
|
|
X/Z-axis repeatability
|
0.006/0.007mm
|
|
Roughness
|
Ra0.8μm
|
|
Overall dimensions(L×W×H)
|
2000×1300×1650mm
|
|
Machine weight
|
Net weight
|
1800kg
|
|
Gross weight
|
2300kg
|
|
