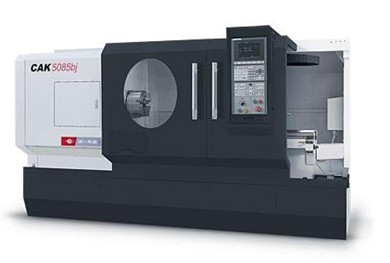

CAK50j
Series
|
CAK50i
Series
|
CAK61j
Series
|
CAK61i
Series
|
CAK63
Series
|
CAK80
Series
|
|
The largest diameter rotary bed
|
500mm
|
500mm
|
610mm
|
610mm
|
630mm
|
800mm
|
|
Guide span
|
400mm
|
400mm
|
400mm
|
400mm
|
550mm
|
600mm
|
|
Maximum length of the workpiece
|
640 890 1390 1900mm
|
750 1500
3000mm
|
1500 3000
5000mm
|
|
Turning the greatest length
|
600 850 1350 1860mm
|
600 1350
2850mm
|
1350 2850
4850mm
|
|
Turning diameter of the largest
|
Vertical carrier
|
500(Up 4))360(Up 6)mm
|
610(Up 4)480(Up 6)mm
|
630mm
|
800mm
|
|
The largest diameter rotary skateboards
|
300mm
|
300mm
|
370mm
|
370mm
|
350mm
|
480mm
|
|
Turning diameter of the largest
|
Horizontal carrier
|
400mm
|
400mm
|
500mm
|
500mm
|
Horizontal 6 500mm
Horizontal 8 400mm
|
Horizontal 6 600mm
|
|
The largest diameter rotary skateboards
|
280mm
|
280mm
|
350mm
|
350mm
|
Horizontal 6 350mm
Horizontal 8 310mm
|
Horizontal 6 480mm
|
|
Spindle end type and code
|
A8mm
|
A8mm
|
A8mm
|
A8mm
|
D11mm
|
D11mm
|
|
Chuck
|
Manual
|
●
|
●
|
●
|
●
|
●
|
●
|
|
φ250
|
φ250
|
φ250
|
φ250
|
φ315
|
φ315
|
|
Pneumatic
|
★
|
★
|
★
|
★
|
/
|
/
|
|
φ250
|
φ250
|
φ250
|
φ250
|
/
|
/
|
|
Hydraulic
|
★
|
★
|
★
|
★
|
★
|
★
|
|
φ250
|
φ250
|
φ250
|
φ250
|
304
|
304或381
|
|
Holes front spindle taper
|
1:20
|
1:20
|
1:20
|
1:20
|
1:20
|
1:20
|
|
Spindle aperture
|
70mm
|
70mm
|
70mm
|
70mm
|
104mm
|
104mm
|
|
Spindle Speed Series
|
Two-speed motor
|
●
|
/
|
●
|
/
|
/
|
/
|
|
12Class n
|
/
|
12Class n
|
/
|
|
Frequency Motor
|
★
|
●
|
★
|
●
|
Automatic four tranches
no class
|
Automatic four tranches
no class
|
|
No automatic level break-throughs
|
No automatic level break-throughs
|
No automatic level break-throughs
|
No automatic level break-throughs
|
|
Spindle speed range
|
Two-speed motor
|
●
|
/
|
●
|
/
|
/
|
/
|
|
40-1800r/min
|
/
|
40-1800r/min
|
/
|
|
Frequency Motor
|
★
|
●
|
★
|
●
|
17-128 38-278
75-750
170-1000r/min
|
17-100 38-222
76-445
180-1000r/min
|
|
22-220 71-710 215-2200 r/min
|
|
Main Motor Power
|
Two-speed motor
|
●
|
/
|
●
|
/
|
/
|
/
|
|
6.5/8kW
|
/
|
6.5/8kW
|
/
|
|
Frequency Motor
|
★
|
●
|
★
|
●
|
11kW
|
15kW
|
|
7.5kW
|
7.5kW
|
7.5kW
|
7.5kW
|
|
Center High
|
From the bed
|
250mm
|
250mm
|
305mm
|
305mm
|
315mm
|
400mm
|
|
From the ground
|
1130mm
|
1130mm
|
1185mm
|
1185mm
|
1110mm
|
1130mm
|
|
Fast motion speed X/Z
|
5/10(6 pm to 1900mm Z) mm/min
|
4/8 m/min
|
4/8 m/min
|
|
Carrier transfer time (1 Position)
|
2.4(Up 4) 2.2(Up 6) 1.6(Horizontal 6) s
|
3.9(Up 4) 3.6(Up 6)
1.7(Horizontal 6) 1.6(Horizontal 8 ) s
|
|
Carrier transfer repetitive positioning accuracy
|
0.008"mm
|
0.008"mm
|
0.008"mm
|
0.008"mm
|
0.008"mm
|
0.008"mm
|
|
X axis trip
|
250mm
|
250mm
|
305mm
|
305mm
|
320mm
|
420mm
|
|
Z-axis trip
|
600 850 1350 1860 mm
|
600 1350
2820 mm
|
1350 2850
4850 mm
|
|
Accuracy of the workpiece
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
|
Accuracy of the workpieceWorkpiece surface roughness
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
Ra1.6μm
|
|
Mei Taiwan sleeve diameter / itinerary
|
75/150mm
|
75/150mm
|
75/150mm
|
75/150mm
|
100/250mm
|
100/250mm
|
|
Tailstock Taper Holes
|
Morse No.5
|
|
Carrier forms
|
Vertical Position 4
|
●
|
●
|
●
|
●
|
●
|
●
|
|
Vertical Position 6
|
★
|
★
|
★
|
★
|
★
(Coord-
ination Tailstock)
|
★
(
Coord-
ination Tailstock
|
|
Horizontal Position 6
|
★
|
★
|
★
|
★
|
★
|
★
|
|
Horizontal Position 8
|
|
|
|
|
★
|
|
|
Arbor Size
|
Cylindrical
|
□25×25mm
|
□25×25mm
|
□25×25mm
|
□25×25mm
|
□32×32mm
|
□32×32mm
|
|
Hole
|
φ32,φ25mm
|
φ32,φ25mm
|
φ32,φ25mm
|
φ32,φ25mm
|
φ32mm
|
φ32mm
|
|
Maximum loading
|
Shaft
|
1300 1500 1600 1700kg
|
1500 2000
2500kg
|
2000 2500
3000kg
|
|
Disk pieces
|
600kg
|
1000kg
|
1200kg
|
|
Machine weight
|
2100 2300 2600 2900kg
|
2200 2500 2700 3000kg
|
3750 4000
5000kg
|
5500 6500 8000kg
|
