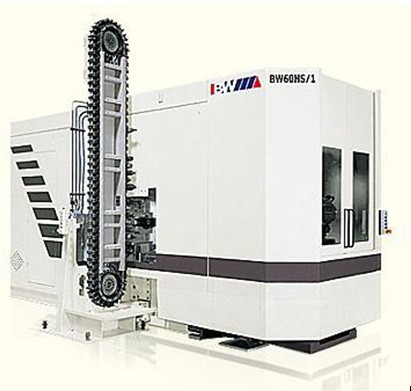

BW60HS/1系列high speed horizontal machining center |
| |
|
| >> BW60HS/1系列Product Preview Keys：
Hits：5710 |
BW series high speed horizontal machining centers adopt frame-type construction of good rigidity with characteristics of high machining accuracy, good dynamic performance, high speed and fast tool changing etc. X, Y and Z-axis, connected with main frame directly and driven by adoption of linear roller cylinder guiding system and AC servomotor, can obtain rapid speed of 60m/min and accelerate speed of 10m/s2. The spindle is of high speed motor spindle with max. rotation speed of 16000r/min. The round type tool magazine, driven by AC servomotor, can accomplish auto tool changing action within 3.5 sec. Machines of this series are featured with high accuracy, high speed and high efficiency.
|
|
| >> BW60HS/1系列Technical parameters |
|
Travel
|
X-axis
|
700 mm
|
|
Y-axis
|
630 mm
|
|
Z-axis
|
550(630) mm
|
|
Acceleration
|
X、Y、Z axis
|
10 m/s2
|
|
Rapid traverse
|
X、Y、Z axis
|
60 m/min
|
|
Cutting feed X, Y, Z
|
0-60000 mm/min
|
|
Accuracy of the machine（VDI/DGQ3441 by German standards）
|
|
|
Accuracy of the machine（VDI/DGQ3441 by German standards）
|
0.006 mm
|
|
Positioning accuracy X、Y、Z
|
0.004 mm
|
|
Repeatability X、Y、Z
|
|
|
Motor spindle
|
Single Spindle
|
|
Quantity of spindle
|
HSK A63（A100）
|
|
Spindle taper
|
20-12000r/min
|
|
Spindle speed
|
18/23 kW
|
|
Max. Power(100%/40%)
|
172/225 Nm
|
|
Max. spindle torque
|
90(110) mm
|
|
Diameter of bearing
|
1 sec
|
|
Start or stop time
|
Lipid (oil) lubricating
|
|
Lubrication
|
Q1
|
|
Grade of spindle balance
|
|
|
Cooling system
|
20（50）
|
|
Pressure of cooling water through the center bar
|
3.5
|
|
Pressure of outside cooling water bar
|
|
|
Measuring system
|
Absolute loop
|
|
X、Y、Z、B axis
|
Siemens 840D
|
|
CNC system
|
|
|
NC table
|
|
|
2 exchangeable pallets
|
630×630 mm
|
|
Worktable size
|
800 kg
|
|
Max. load on the table
|
40 r/min
|
|
Max. speed of NC table
|
0.001°
|
|
Index of the table
|
8 arc sec
|
|
Positioning accuracy of NC table
|
5 arc sec
|
|
Repeatability of NC table
|
7 arc sec
|
|
Pallets changing time
|
|
|
Magazine type
|
Disc chain
|
|
Magazine capacity
|
16/32 32/48
|
|
Shank specification
|
HSK A63（A100）
|
|
Max. tool length
|
350(550) mm
|
|
Max. tool diameter
|
125(320) mm
|
|
Max. tool weight
|
12(25) kg
|
|
Tool changing time T-T/C-C
|
1/3.5(2/5) sec
|
|
Power
|
3-380VAC,50Hz
|
|
Total power capacity
|
65 KVA
|
|
Air source
|
|
|
Pressure of air
|
4-6 bar
|
|
Consume volume of air
|
10 m3/h
|
|
Net weight of main machine
|
15000 kg
|
|
Dimensions of machine（L×W×H）
|
5.6×2.2×3.75
5.6×3.5×3.75 m
|
|
Floor space（L×W×H）
|
5.6×3.7×3.75
6.2×3.35×3.75
6.2×3.5×3.75 m
|
|
