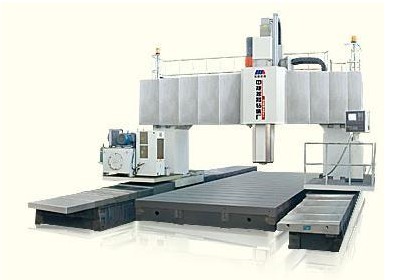

GMB3060mr
|
GMB3080mr
|
GMB30100mr
|
GMB30140mr
|
|
Worktable
|
Worktable size
|
3000×6000mm
|
3000×8000mm
|
3000×10000mm
|
3000×14000mm
|
|
Distance between two colunms
|
3900mm
|
|
Max.Load capacity
|
7000kg/m3
|
|
T-slot
|
36×12mm×N
|
36×16mm×N
|
36×20mm×N
|
36×28mm×N
|
|
Machining range
|
Gantry travel(X-axis)
|
6500mm
|
8500mm
|
10500mm
|
14500mm
|
|
Saddle travel(Y-axis)
|
4100mm
|
|
Ram travel (Z-axis)
|
1500mm
|
|
Distance from spindle end to top surface or table
|
Max.
|
1700mm
|
|
Min.
|
200mm
|
|
Spindle
|
Taper of hole in spindle(7:24)
|
BT50
|
|
Range of spindle speed
|
40-2000r/min
|
|
Max. spindle torque
|
2050/2830N.m
|
|
Power of main motor
|
37/51kW
|
|
Section area size of square ram
|
500×500mm
|
|
Feed
|
Cutting feed speed range
|
1-5000mm/min
|
|
Rapid traverse
|
X1,X2
|
8m/min
|
|
Y
|
8m/min
|
|
Z
|
8m/min
|
|
Rositioning accuracy
|
According to standard(ISO8636-1:2000)
|
X1,X2
|
0.015/2000Bring Gratingmm
|
|
Y
|
0.040(0.025Bring Grating）mm
|
|
Z
|
0.025(0.015Bring Grating）mm
|
|
Executing standard(JISB6330)
|
X1,X2
|
±0.005/300(±0.003/300Bring Grating）mm
|
|
Y
|
|
Z
|
|
Repeatability
|
According to standard(ISO8636-1:2000)
|
X1,X2
|
0.010/2000Bring Gratingmm
|
|
Y
|
0.026(0.016Bring Grating）mm
|
|
Z
|
0.014(0.010Bring Grating）mm
|
|
Executing standard(JISB6330)
|
X1,X2
|
±0.003(±0.002Bring Grating）mm
|
|
Y
|
|
Z
|
|
Weight of machine
|
105t
|
120t
|
135t
|
150t
|
|
CNC Control system
|
Siemens840D
|
