SUC8108轴颈油孔数控钻专用数控机床
Hits：1257 |

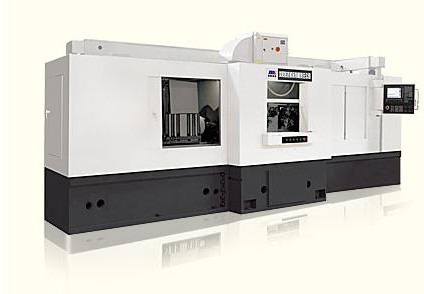

SUC8108 special purpose machine is suitable for machining various camshaft journal oil holes. It features five servo axes, named Z1, Z2, X1, X2 and X3, and adopts CNC system to form a flexible unit. One work-piece can be set up in each cycle and clamped by hydraulic clamping device. The machine consists of bed, guard, cooling system, lubrication system, conveyor, hydraulic system, fixed drilling plate, electrical control cabinet, headstock and slide. It adopts MITSUBISHI control system and AC servomotor. Fast programming and convenient operation, water tank with large flow capacity in cooling system, effective integrated guard and wires in the air, automatic door, as well as specious appearance are features of the machine. |
|
| >> SUC8108轴颈油孔数控钻床系列Technical parameters |
|
Station number
|
1
|
|
Loading height
|
1060mm
|
|
Center height of headstock
|
85mm
|
|
Slide width
|
Z-axis
|
400mm
|
|
X-axis
|
160mm
|
|
Height between spindle center and bed plane
|
500mm
|
|
Positioning accuracy of slide
|
0.02mm
|
|
Spindle speed
|
600-1100r/min
|
|
Travel of CNC slide
|
Z1=303mm
|
|
|
Z2=440mm
|
|
Ball screw of CNC slide (diameter×screw pitch)
|
Z-axis
|
φ40×8
|
|
X-axis
|
φ20×6
|
|
Feed speed of slide
|
Vmax=7m/min
|
|
Oil tank capacity of hydraulic system
|
120L
|
|
Motor power of hydraulic pump
|
4kW
|
|
Type of hydraulic pump
|
VP-40-FA2
|
|
Machine power
|
12kW
|
|
Machine weight
|
6000kg
|
|
