SUC8107铣钻打数控专机系列专用数控机床 |
| |
|
| >> SUC8107铣钻打数控专机系列Product Preview Keys：
Hits：1050 |

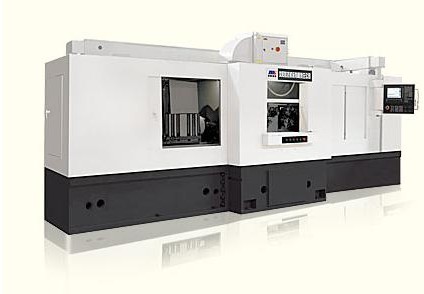

SUC8107 double-face horizontal four-station machine is a special purpose machine for milling two end faces, drilling center hole and positioning pinhole and marking, and also a parallel moving four-station machine applied to milling two end faces of camshafts, drilling center holes at two ends, drilling and reaming positioning pinholes at one end, and marking. |
|
| >> SUC8107铣钻打数控专机系列Technical parameters |
|
Work-piece length range
|
450-1000mm
|
|
Work-piece diameter range
|
40-70mm
|
|
Milling spindle taper
|
BT50
|
|
Spindle taper for drilling center hole
|
BT40
|
|
Spindle taper for drilling and reaming pinhole
|
BT40
|
|
Cutterhead diameter
|
100-200mm
|
|
Max. travel of cross CNC slide
|
360mm
|
|
Max. travel of longitudinal CNC slide
|
1550mm
|
|
Loading height
|
1390mm
|
|
Machine power
|
41kW
|
|
Machine Dimension
|
4270×2990×2322mm
|
|
Machine weight
|
18000kg
|
|
